Use StorageGRID for private container registry
Docker Registry
This post needs a refresh, but the tldr of it is: you need to work by Docker docs and use StorageGRID values like so:
- regionendpoint: https://s3.dot.org:8443 # StorageGRID S3 API endpoint
- bucket: docker-registry # create it beforehand, secure with S3 ACLs
- secure: true # use HTTPS to SG S3 (strongly recommended)
- v4auth: true # v4 auth, we want this
- chunksize: 8388608 # Docker Registry min is 5*1024*1024, here I set 8 MiB
- rootdirectory: /scaleoutsean # "subdirectory" in bucket
There are other settings you can (and have to) set, some mandatory (but not StorageGRID-specific), some optional. I haven't tested encrypt (optional, default: false), for example.
Start Docker registry container (by default it runs on port 5000, but I'm running mine on port 5001) and push a docker image to it:
$ sudo docker push localhost:5001/sean/onecollect:2.2
The push refers to repository [localhost:5001/sean/onecollect]
1f86270f8b10: Pushed
d8e7bb532026: Pushed
4491ef6d3684: Pushed
237fede51eb1: Pushed
22b25abc8483: Pushed
3079b27917f6: Pushed
474ea542cb75: Pushed
d65a2752aa83: Pushed
a82f5cf3c2ac: Pushed
0484528dc83e: Pushed
40a9a68a4a2d: Pushed
1704948fdfa1: Pushed
43111861f90f: Pushed
e39388a91f88: Pushed
d69f00255e33: Pushed
cc9d18e90faa: Pushed
0c2689e3f920: Pushed
47dde53750b4: Pushed
2.2: digest: sha256:11752ab8043ac8eea544cd1f94540f3cc7f2999b678db4c06c84e8b0d1d4fde1 size: 4070

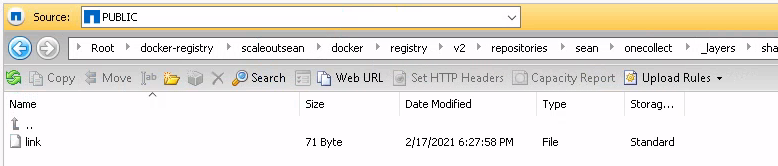

Now you should see some stuff in the registry-backing bucket:
Because we downloaded that Docker image from Docker Hub first, now we have two:
$ sudo docker images | grep coll
localhost:5001/sean/onecollect 2.2 fb484820200c 2 months ago 350MB
netapp/onecollect latest fb484820200c 2 months ago 350MB
Remove both of them and try to download OneCollect from StorageGRID-backed private registry:
$ sudo docker pull localhost:5001/sean/onecollect:2.2
2.2: Pulling from sean/onecollect
6a5697faee43: Pull complete
ba13d3bc422b: Pull complete
a254829d9e55: Pull complete
307bfc31a030: Pull complete
8d16aae92253: Pull complete
e880f7506ac2: Pull complete
8658c249d939: Pull complete
e62f0c8b95a8: Pull complete
b3467aefecbc: Pull complete
e6ff3d4e27e5: Pull complete
198075eb550e: Pull complete
aa0aad1f63d7: Pull complete
edcb4255c8da: Pull complete
e6dc89a40119: Pull complete
b8c7dc79a72e: Pull complete
5a15ee51ad5a: Pull complete
2ba1851ce93a: Pull complete
1f9a330b5ade: Pull complete
Digest: sha256:11752ab8043ac8eea544cd1f94540f3cc7f2999b678db4c06c84e8b0d1d4fde1
Status: Downloaded newer image for localhost:5001/sean/onecollect:2.2
localhost:5001/sean/onecollect:2.2
Harbor Registry
After Docker Registry I installed Harbor. It's very similar and S3 related settings are nearly identical (in harbor.yaml) - I even used the same StorageGRID S3 bucket (rootdirectory was scaleoutsean-harbor vs. scaleoutsean with Docker Registry).
$ docker images
REPOSITORY TAG IMAGE ID CREATED SIZE
goharbor/chartmuseum-photon v2.2.0 036eabb4e8b4 7 days ago 165MB
goharbor/redis-photon v2.2.0 af30f909bcd0 7 days ago 68.9MB
goharbor/trivy-adapter-photon v2.2.0 576741ea40ad 7 days ago 116MB
goharbor/notary-server-photon v2.2.0 e4dcdf19f2ca 7 days ago 101MB
goharbor/notary-signer-photon v2.2.0 8d2b8194d69c 7 days ago 98.4MB
goharbor/harbor-registryctl v2.2.0 7d2c74e67290 7 days ago 128MB
goharbor/registry-photon v2.2.0 76a8d4dfb507 7 days ago 77.2MB
goharbor/nginx-photon v2.2.0 1eed7232f077 7 days ago 40.2MB
goharbor/harbor-log v2.2.0 186bd0f71fc4 7 days ago 108MB
goharbor/harbor-jobservice v2.2.0 aaa1bcbec29f 7 days ago 163MB
goharbor/harbor-core v2.2.0 bef56a1d9844 7 days ago 148MB
localhost:5000/library/harbor-portal v2.2.0 c81e05ebcfba 7 days ago 51MB
goharbor/harbor-portal v2.2.0 c81e05ebcfba 7 days ago 51MB
goharbor/harbor-db v2.2.0 818e07587d3b 7 days ago 174MB
goharbor/prepare v2.2.0 0e98e9a1a9b1 7 days ago 165MB
goharbor/harbor-exporter v2.2.0 9ab1248a90dd 7 days ago 76.1MB
k8s.gcr.io/kube-proxy v1.20.2 43154ddb57a8 5 weeks ago 118MB
k8s.gcr.io/kube-apiserver v1.20.2 a8c2fdb8bf76 5 weeks ago 122MB
k8s.gcr.io/kube-controller-manager v1.20.2 a27166429d98 5 weeks ago 116MB
k8s.gcr.io/kube-scheduler v1.20.2 ed2c44fbdd78 5 weeks ago 46.4MB
registry 2 678dfa38fcfa 2 months ago 26.2MB
registry latest 678dfa38fcfa 2 months ago 26.2MB
netapp/onecollect 2.2 fb484820200c 2 months ago 350MB
localhost:5001/sean/onecollect 2.2 fb484820200c 2 months ago 350MB
k8s.gcr.io/etcd 3.4.13-0 0369cf4303ff 5 months ago 253MB
k8s.gcr.io/coredns 1.7.0 bfe3a36ebd25 8 months ago 45.2MB
k8s.gcr.io/pause 3.2 80d28bedfe5d 12 months ago 683kB
$ docker tag goharbor/nginx-photon:v2.2.0 localhost:5000/library/nginx-photon:v2.2.0
$ docker push localhost:5000/library/nginx-photon:v2.2.0
The push refers to repository [localhost:5000/library/nginx-photon]
57c3cb695990: Pushed
230005775895: Mounted from library/harbor-portal
v2.2.0: digest: sha256:5b2a1a4873e18444c6dffee72a2e8b7ce8880e8586b56eaa7e39b1575bb55a15 size: 740

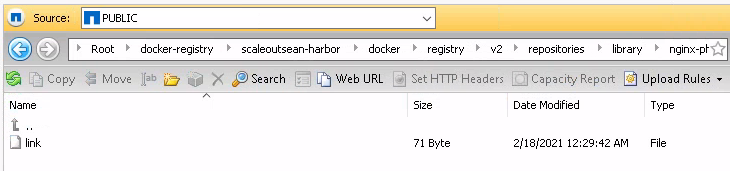

In the same bucket, now in the scaleoutsean-harbor (sub)directory, we can see the uploaded content:
Same as with Docker Registry, we can pull specific version of the image using its SHA256 sum or tag.
$ docker pull localhost:5000/library/harbor-portal@sha256:8c9635208a3d89f8a3b575929672b3a14c3e3af59ca41c0afd09734a02a3df6e
$ docker pull localhost:5000/library/harbor-portal:v2.2.0
v2.2.0: Pulling from library/harbor-portal
Digest: sha256:8c9635208a3d89f8a3b575929672b3a14c3e3af59ca41c0afd09734a02a3df6e
Status: Image is up to date for localhost:5000/library/harbor-portal:v2.2.0
localhost:5000/library/harbor-portal:v2.2.0

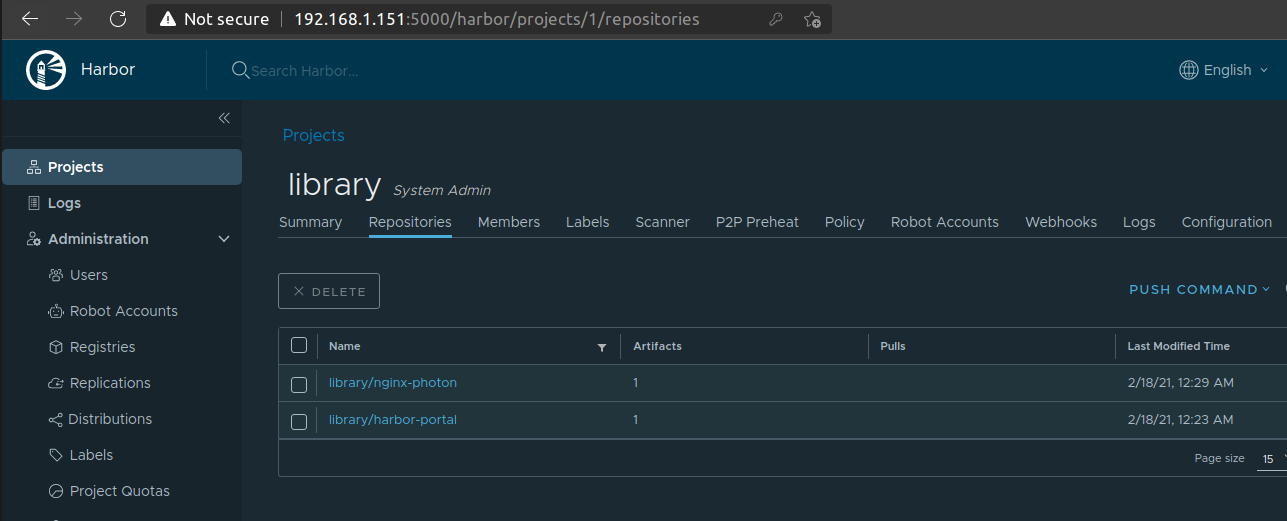

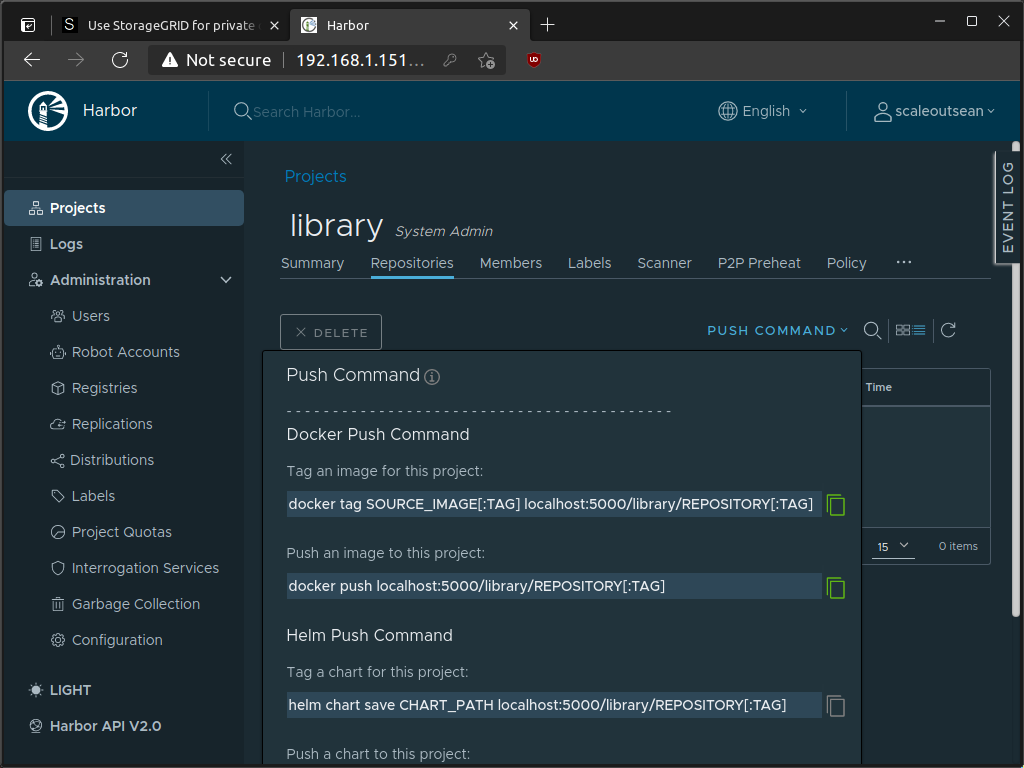

The Web UI assists with these tasks and has some other features:
Demo
Find it here (1m4s).
References
- NetApp StorageGRID 11.4
- Docker Registry S3 storage driver options
- Harbor v2.2.0-rc2 (download v2.2.0-rc2; currently published documentation for v2.0.0)
- Storage configuration options for Docker Registry
