S3/RDMA with Versity S3 Gateway and NetApp E-Series
Introduction
I've written a number of posts about the Versity S3 Gateway with NetApp E-Series. I think it's a great combination.
Earlier this week Versity committed S3/RDMA code to the Versity S3 Gateway repository.
Is that useful? Can we use it with E-Series? How?
Let's take a crack at these questions.
Use cases
RDMA is useful with S3 as it is with NVMe (which, let's not forget, has a poor man's version in NVMe/TCP).
So that is the first and obvious use case - accessing large objects without burdening the gateway. In this case, "the gateway" would be:
- a Versity S3 gateway running in a Kubernetes container, VM or bare metal server, sharing data from an E-Series-backed LUN (very generic and universal)
- half a dozen Versity S3 gateways sharing data from BeeGFS in parallel
Common use cases (copied from the Versity repository):
| Use case | Why |
|---|---|
| Large-object streaming on a RoCE/IB fabric | Near line-rate throughput with no CPU loading |
| AI/ML training | Data loading from object storage eliminates host-memory copy |
Since there's no extra "cost" to it - S3 over RDMA compared to S3 over TCP - if you have RDMA-capable hardware and it's faster with RDMA than without it, there's no reason to not use it.

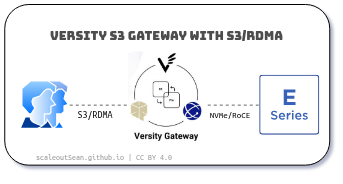

Making use of VGW S3/RDMA with E-Series
This will be updated as I make progress actually doing it, but the concept is simple:
- Deploy VGW with S3/RDMA on a RoCE-capable network
Optionally (the second leg of I/O path):
- Serve data on E-Series with NVMe/RoCE interfaces and NVMe disks. RDMA/IB will also work, of course. EF-Series EF80 is currently the best model for both RoCE and IB and it's the same network card configuration that can serve on or the other. While VGW S3/RDMA will work even with E-Series E4012 with iSCSI interfaces, I/O will get bottle-necked on disk array interfaces and disks.
That could give us end-to-end RDMA with regular filesystems (XFS, for example). You can try it today by following the instructions.
BeeGFS clients use RDMA, so one could in theory run VGW S3/RDMA on BeeGFS clients and still get end-to-end RDMA, but this is more complex so we'll have to see if this is as simple as single host filesystems.
Where does NetApp StorageGRID fit
StorageGRID 12.1 does not support S3/RDMA, so currently it's like having two NAS boxes, one with NFS v3 and another with NFS v3 and v4 support. We can access both at the same time, if we want. Or, we can copy/move data from one to another and compute using that protocol.
It's the same logic as in using just BeeGFS for batch processing data copied from (BeeGFS without Versity S3 Gateway): sometimes it can be less costly to copy to another tier and compute faster after that, than to compute in place.
Ideally, copying should be avoided. But consider that StorageGRID provides data security, durability and protection that's significantly different to BeeGFS on NVMe/RoCE. Mixing both in the same cluster often results in a higher cost of capacity and performance across the board. You end up with a platform that does everything and does it fast, but it's usually an all-flash system that costs multiple times more even after advanced data reduction. It's not a bad option, but it has tradeoffs and this isn't just unnecessary copying between "islands" of storage systems with very similar properties.
But even in this diagram, it's not mandatory to copy anything. You may have existing inferencing or other workflows in place and simply add S3/RDMA as a KV cache destination, if you plan on using S3 for KV cache. Zero copying and no change to your workflows.
Conclusion
For NetApp users, Versity S3 Gateway with S3/RDMA is currently the only way to get S3/RDMA at HPC-like cost of performance. S3/RDMA will likely become available - and even be built-in - on other NetApp storage platforms, but not at this cost of performance for protected storage. For KV Cache use case, you could even run this thing on RAID 0 volumes to get an even lower cost of performance.
Versity S3 Gateway with S3/RDMA on BeeGFS not only enables E-Series to provide crazy-fast access to data without traditional file sharing services (you can run it even on Kubernetes), but also makes it possible to supplement StorageGRID with S3 on E-Series to let applications do the heavy lifting on E-Series and output the results to StorageGRID.
In some cases we'll need the fastest GET over S3/RDMA possible in order to fetch or analyze large files or file sets (backup-to-disk, or perhaps analytics queries) and in other cases there may be several instances of VGW S3/RDMA deployed on a BeeGFS cluster used for rapid processing of terabytes of data.
It is simple and cost effective because Versity (and ThinkParQ) did the work for us and made the software available for free. I'm interested in a variety of use cases related to S3/RDMA and E-Series, so look forward to blogging more on this topic.
Appendix A: VGW S3/RDMA backed by E-Series (NVMe/RoCE)
Although Versity S3 Gateway notes currently recommend just one particular Rocky Linux 9 and kernel version, it can be made to work on Ubuntu 26.04. Just follow the steps from the Versity User Guide for S3/RDMA and install the dependencies before building. I used CUDA Toolkit (installing just CUDA Runtime wasn't enough). All three binaries could be built, but I couldn't use the CUDA client as I didn't have GPU hardware.
In this test below:
- I did not have CUDA hardware, i.e. slow host memory was used instead of CUDA and GPU
- I could not use objects larger than 8 MiB, which is too small to see benefits from RDMA hand-off even if I had GPU hardware
As a result, it doesn't work faster than regular Versity S3 Gateway, but this is a huge step forward.

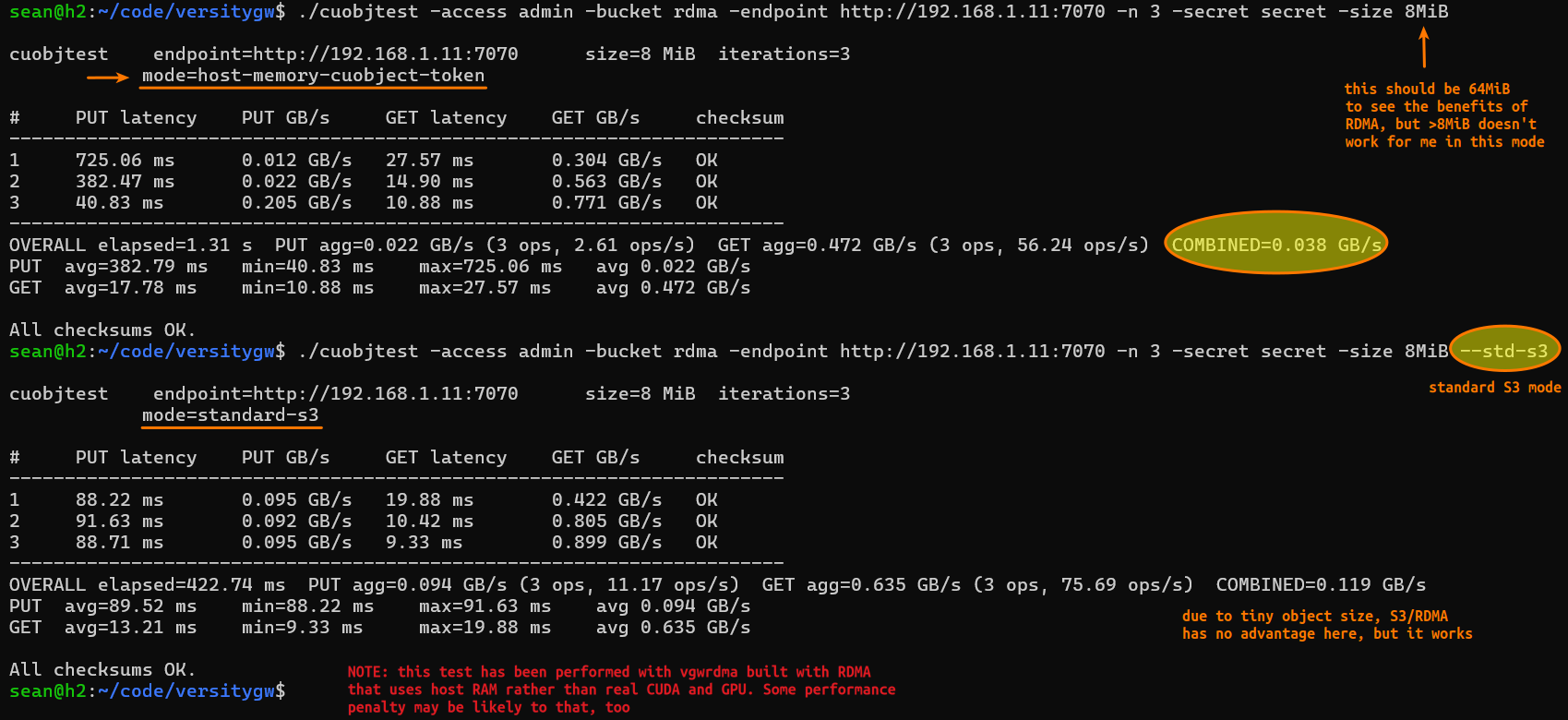

A screenshot from two client tests, S3/RDMA and standard S3:
If anyone tries to build on Ubuntu 26.04 and 24.04:
- the client was Ubuntu 24.04 LTS with latest CUDA 13.3, both types of clients were built successfully
- the server was Ubuntu 26.04 LTS with latest CUDA 13.3, both server and two clients were built successfully
Server details were as follows:
- Ubuntu 26.04 LTS
- Kernel modules:
$ lsmod
Module Size Used by
ib_iser 57344 0
libiscsi 81920 1 ib_iser
rpcrdma 450560 0
scsi_transport_iscsi 176128 2 ib_iser,libiscsi
ib_ipoib 143360 0
ib_umad 45056 0
rdma_ucm 40960 0
nf_conntrack_netlink 61440 0
xt_nat 12288 0
xt_tcpudp 16384 0
veth 45056 0
xt_conntrack 12288 6
xt_MASQUERADE 16384 6
xfrm_user 69632 1
xfrm_algo 16384 1 xfrm_user
xt_set 20480 0
ip_set 61440 1 xt_set
nft_chain_nat 12288 6
nf_nat 65536 3 xt_nat,nft_chain_nat,xt_MASQUERADE
xt_addrtype 12288 4
nft_compat 20480 16
nf_tables 409600 172 nft_compat,nft_chain_nat
beegfs 782336 0
xfs 2981888 2
cpuid 12288 0
algif_hash 20480 0
af_alg 32768 1 algif_hash
dm_round_robin 12288 36
dm_vdo 618496 1
dm_bufio 57344 1 dm_vdo
lz4_compress 24576 1 dm_vdo
qrtr 53248 2
cfg80211 1536000 0
intel_rapl_msr 20480 0
intel_rapl_common 57344 1 intel_rapl_msr
intel_uncore_frequency 12288 0
intel_uncore_frequency_common 20480 1 intel_uncore_frequency
binfmt_misc 24576 1
skx_edac 20480 0
skx_edac_common 28672 1 skx_edac
nfit 81920 1 skx_edac_common
x86_pkg_temp_thermal 20480 0
intel_powerclamp 28672 0
nls_iso8859_1 12288 1
coretemp 24576 0
kvm_intel 552960 0
kvm 1527808 1 kvm_intel
cmdlinepart 16384 0
irqbypass 16384 1 kvm
spi_nor 180224 1
irdma 516096 0
rapl 20480 0
mtd 106496 5 spi_nor,cmdlinepart
intel_cstate 20480 0
ice 1511424 1 irdma
ipmi_ssif 45056 0
ses 20480 0
idpf 229376 1 irdma
mlx5_ib 548864 0
enclosure 24576 1 ses
libeth_xdp 32768 2 idpf,ice
macsec 77824 1 mlx5_ib
ib_uverbs 204800 3 irdma,rdma_ucm,mlx5_ib
gnss 20480 1 ice
mgag200 77824 0
cdc_ether 28672 0
libeth 20480 3 libeth_xdp,idpf,ice
usbnet 65536 1 cdc_ether
i2c_algo_bit 16384 1 mgag200
libie_fwlog 28672 1 ice
mii 20480 1 usbnet
ipmi_si 94208 1
acpi_power_meter 24576 0
acpi_ipmi 24576 1 acpi_power_meter
ipmi_devintf 20480 0
mei_me 61440 0
i2c_i801 36864 0
ipmi_msghandler 98304 4 ipmi_devintf,ipmi_si,acpi_ipmi,ipmi_ssif
acpi_pad 184320 0
i2c_smbus 20480 1 i2c_i801
spi_intel_pci 12288 1
mei 184320 1 mei_me
i2c_mux 20480 1 i2c_i801
lpc_ich 32768 0
spi_intel 36864 1 spi_intel_pci
intel_pch_thermal 20480 0
ioatdma 90112 0
dca 20480 1 ioatdma
mac_hid 12288 0
nfsd 1069056 1
auth_rpcgss 188416 1 nfsd
nfs_acl 12288 1 nfsd
lockd 151552 1 nfsd
grace 16384 2 nfsd,lockd
sch_fq_codel 28672 2
sunrpc 851968 6 nfsd,rpcrdma,auth_rpcgss,lockd,nfs_acl
efi_pstore 12288 0
dm_multipath 45056 19 dm_round_robin
nfnetlink 20480 6 nft_compat,nf_conntrack_netlink,nf_tables,ip_set
mlx5_core 3088384 1 mlx5_ib
i40e 663552 1 irdma
mlxfw 36864 1 mlx5_core
psample 24576 1 mlx5_core
mpt3sas 430080 0
tls 163840 1 mlx5_core
uas 32768 0
libie 8192 2 i40e,ice
raid_class 12288 1 mpt3sas
ghash_clmulni_intel 12288 0
megaraid_sas 233472 3
usb_storage 86016 1 uas
pci_hyperv_intf 12288 1 mlx5_core
libie_adminq 12288 2 i40e,ice
scsi_transport_sas 57344 2 ses,mpt3sas
wmi 36864 0
ahci 53248 0
libahci 57344 1 ahci
dm_mirror 28672 0
dm_region_hash 24576 1 dm_mirror
dm_log 20480 2 dm_region_hash,dm_mirror
nvme_rdma 49152 75
nvme_fabrics 36864 1 nvme_rdma
rdma_cm 155648 5 beegfs,rpcrdma,nvme_rdma,ib_iser,rdma_ucm
iw_cm 61440 1 rdma_cm
ib_cm 151552 2 rdma_cm,ib_ipoib
ip_vs_wrr 12288 0
ip_vs_sh 12288 0
ip_vs_rr 12288 0
ib_core 552960 14 beegfs,rdma_cm,ib_ipoib,rpcrdma,nvme_rdma,iw_cm,ib_iser,ib_umad,irdma,rdma_ucm,ib_uverbs,mlx5_ib,ib_cm
ip_vs 229376 6 ip_vs_rr,ip_vs_sh,ip_vs_wrr
br_netfilter 32768 0
nf_conntrack 196608 6 xt_conntrack,nf_nat,xt_nat,nf_conntrack_netlink,xt_MASQUERADE,ip_vs
nvme_core 241664 77 nvme_rdma,nvme_fabrics
bridge 425984 1 br_netfilter
ip6table_filter 12288 0
iptable_filter 12288 0
nvme_keyring 20480 2 nvme_core,nvme_fabrics
ip_tables 36864 1 iptable_filter
nf_defrag_ipv6 24576 2 nf_conntrack,ip_vs
overlay 233472 0
ip6_tables 36864 1 ip6table_filter
stp 12288 1 bridge
arp_tables 32768 0
nvme_auth 28672 1 nvme_core
nf_defrag_ipv4 12288 1 nf_conntrack
llc 16384 2 bridge,stp
hkdf 12288 1 nvme_auth
x_tables 65536 12 ip6table_filter,xt_conntrack,iptable_filter,nft_compat,xt_tcpudp,xt_addrtype,xt_nat,xt_set,ip6_tables,ip_tables,xt_MASQUERADE,arp_tables
msr 12288 0
dmi_sysfs 28672 0
autofs4 61440 2
aesni_intel 98304 0
- RDMA NICs:
Mellanox Technologies MT28908 Family [ConnectX-6]Mellanox Technologies MT28908 Family [ConnectX-6]
The first HCA was used in S3/RDMA tests (both were used for NVMe/ROCE I/O):
sean@h1:~$ ibv_devinfo -v -l
4 HCAs found:
mlx5_0
mlx5_1
irdma0
irdma1
sean@h1:~$ ibv_devinfo -v -d mlx5_0
hca_id: mlx5_0
transport: InfiniBand (0)
fw_ver: 20.24.4702
node_guid: b859:9f03:0037:8268
sys_image_guid: b859:9f03:0037:8268
vendor_id: 0x02c9
vendor_part_id: 4123
hw_ver: 0x0
board_id: MT_0000000225
phys_port_cnt: 1
max_mr_size: 0xffffffffffffffff
page_size_cap: 0xfffffffffffff000
max_qp: 262144
max_qp_wr: 8192
device_cap_flags: 0x25321c36
BAD_PKEY_CNTR
BAD_QKEY_CNTR
AUTO_PATH_MIG
CHANGE_PHY_PORT
PORT_ACTIVE_EVENT
SYS_IMAGE_GUID
RC_RNR_NAK_GEN
MEM_WINDOW
XRC
MEM_MGT_EXTENSIONS
MEM_WINDOW_TYPE_2B
RAW_IP_CSUM
MANAGED_FLOW_STEERING
max_sge: 30
max_sge_rd: 30
max_cq: 16777216
max_cqe: 4194303
max_mr: 16777216
max_pd: 16777216
max_qp_rd_atom: 16
max_ee_rd_atom: 0
max_res_rd_atom: 4194304
max_qp_init_rd_atom: 16
max_ee_init_rd_atom: 0
atomic_cap: ATOMIC_HCA (1)
max_ee: 0
max_rdd: 0
max_mw: 16777216
max_raw_ipv6_qp: 0
max_raw_ethy_qp: 0
max_mcast_grp: 2097152
max_mcast_qp_attach: 240
max_total_mcast_qp_attach: 503316480
max_ah: 2147483647
max_fmr: 0
max_srq: 8388608
max_srq_wr: 32767
max_srq_sge: 31
max_pkeys: 128
local_ca_ack_delay: 16
general_odp_caps:
ODP_SUPPORT
ODP_SUPPORT_IMPLICIT
rc_odp_caps:
SUPPORT_SEND
SUPPORT_RECV
SUPPORT_WRITE
SUPPORT_READ
uc_odp_caps:
NO SUPPORT
ud_odp_caps:
SUPPORT_SEND
xrc_odp_caps:
NO SUPPORT
completion timestamp_mask: 0x7fffffffffffffff
hca_core_clock: 156250kHZ
raw packet caps:
C-VLAN stripping offload
Scatter FCS offload
IP csum offload
Delay drop
device_cap_flags_ex: 0x1425321C36
RAW_SCATTER_FCS
PCI_WRITE_END_PADDING
tso_caps:
max_tso: 262144
supported_qp:
SUPPORT_RAW_PACKET
rss_caps:
max_rwq_indirection_tables: 65536
max_rwq_indirection_table_size: 2048
rx_hash_function: 0x1
rx_hash_fields_mask: 0x800000FF
supported_qp:
SUPPORT_RAW_PACKET
max_wq_type_rq: 8388608
packet_pacing_caps:
qp_rate_limit_min: 0kbps
qp_rate_limit_max: 0kbps
tag matching not supported
cq moderation caps:
max_cq_count: 65535
max_cq_period: 4095 us
maximum available device memory: 131072Bytes
num_comp_vectors: 32
port: 1
state: PORT_ACTIVE (4)
max_mtu: 4096 (5)
active_mtu: 4096 (5)
sm_lid: 0
port_lid: 0
port_lmc: 0x00
link_layer: Ethernet
max_msg_sz: 0x40000000
port_cap_flags: 0x04010000
port_cap_flags2: 0x0000
max_vl_num: invalid value (0)
bad_pkey_cntr: 0x0
qkey_viol_cntr: 0x0
sm_sl: 0
pkey_tbl_len: 1
gid_tbl_len: 256
subnet_timeout: 0
init_type_reply: 0
active_width: 4X (2)
active_speed: 25.0 Gbps (32)
phys_state: LINK_UP (5)
GID[ 0]: fe80:0000:0000:0000:ba59:9fff:fe37:8268, RoCE v1
GID[ 1]: fe80::ba59:9fff:fe37:8268, RoCE v2
GID[ 2]: 0000:0000:0000:0000:0000:ffff:c0a8:010b, RoCE v1
GID[ 3]: ::ffff:192.168.1.11, RoCE v2
- GDS/CUDA check (no GPU hardware on client):
$ /usr/local/cuda-13.3/gds/tools/gdscheck -p
No GPU found in the system, use this library only for sysmem
GDS release version: 1.18.1.6
nvidia_fs minimum version: 2.12
Platform: x86_64
============
ENVIRONMENT:
============
=====================
DRIVER CONFIGURATION:
=====================
NVMe : compat
NVMeOF : compat
SCSI : compat
ScaleFlux CSD : compat
NVMesh : compat
DDN EXAScaler : compat
IBM Spectrum Scale : compat
NFS : compat
BeeGFS : compat
ScaTeFS : compat
VIRTIOFS : compat
WekaFS : compat
Userspace RDMA : Unsupported
--Mellanox PeerDirect : Disabled
--rdma library : Not Loaded (libcufile_rdma.so)
--rdma devices : Not configured
--rdma_multipath : Disabled
--rdma_health_monitor : Not initialized
--rdma_dev_addr_list_status : Up: 0 Down: 0
=====================

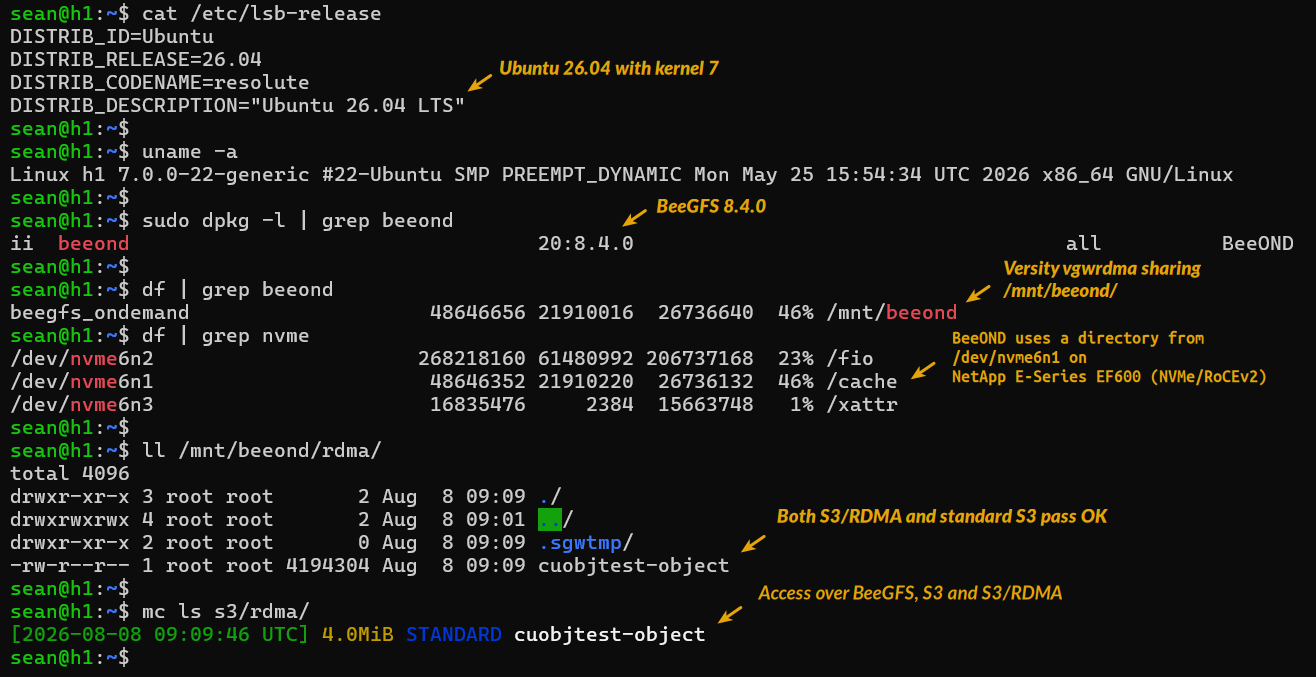

Later today I also tried the same hardware with BeeOND 8.4.0, which also worked for both S3/RDMA and standard S3.
Appendix B: Demo with BeeOND
BeeOND 8.4.0 was used because it's much easier to setup (it takes 30 seconds and can share existing volumes).
Appendix C: Additional fiddling
This is still with host-based memory (no CUDA).
Because I can't reliably get objects larger than 5 MiB to work consistently, I tried several other things. One of them was to add concurrency to cuobjtest.
That helped a lot, even though I'm using the crippled non-GPU RDMA client. Some findings:
| Object size (MiB) | Concurrency | S3/RDMA | Throughput (MiB/s) | CPU % (Host) |
|---|---|---|---|---|
| 5 | 1 | No | 80 | >1% |
| 5 | 1 | Yes | 112 | 1% |
| 5 | 4 | No | 314 | 10% |
| 5 | 4 | Yes | 337 | <7% |
It's still not great (and I haven't tried higher concurrency counts), but it's much better. The real solution is proper CUDA hardware and larger object sizes, but I can't do that now.
With increased concurrency, I was able to get CPU utilization on the server to almost 10% combined when standard S3 is used (HTTP, so no TLS):
-system- ----total-usage---- -dsk/total- -net/total- ---paging-- ---system--
times |usr sys idl wai stl| read writ| recv send| in out | int csw
07:31:20| 6 3 90 0 0| 0 307M| 150M 162M| 0 0 | 47k 31k
07:31:21| 6 2 91 0 0| 0 152k| 152M 142M| 0 0 | 41k 27k
07:31:22| 6 3 90 0 0| 0 68k| 153M 160M| 0 0 | 47k 30k
That's dstat output, so it shows everything. Just FYI.
The same test with S3/RDMA shows S3/RDMA saves me close to 50% - 4 percent compared to 6 percent without S3/RDMA.
-system- ----total-usage---- -dsk/total- -net/total- ---paging-- ---system--
times |usr sys idl wai stl| read writ| recv send| in out | int csw
07:31:45| | | | |
07:31:46| 4 2 92 0 0| 0 545k| 103k 78k| 0 0 | 42k 26k
07:31:47| 4 2 93 0 0| 0 1741k| 96k 68k| 0 0 | 40k 25k
And then of course going from 112 to 337 MiB/s with higher concurrency in cuobjtest is phenomenal. Let's hope Versity adds the concurrency argument to cuobjtest.
$ time ./cuobjtest -access admin -bucket rdma -endpoint http://192.168.1.11:7070 -n 1000 -secret secret -size 5MiB -c 4 -get-only
----------------------------------------------------------------------
OVERALL elapsed=11.73 s GET agg=0.447 GB/s (1000 ops, 85.22 ops/s)
GET avg=22.41 ms min=15.07 ms max=58.77 ms avg 0.234 GB/s
GET-only run complete.
real 0m11.781s
user 0m13.255s
sys 0m15.726s
With -get-only on a 2-CPU (Intel(R) Xeon(R) Silver 4110 CPU @ 2.10GHz) client:
| Object size (MiB) | Concurrency | Access | S3/RDMA | Throughput (MiB/s) |
|---|---|---|---|---|
| 5 | 4 | GET | Yes | 447 |
| 5 | 8 | GET | Yes | 840 |
| 5 | 32 | GET | Yes | 1,367 |
| 5 | 64 | GET | Yes | 1,826 |

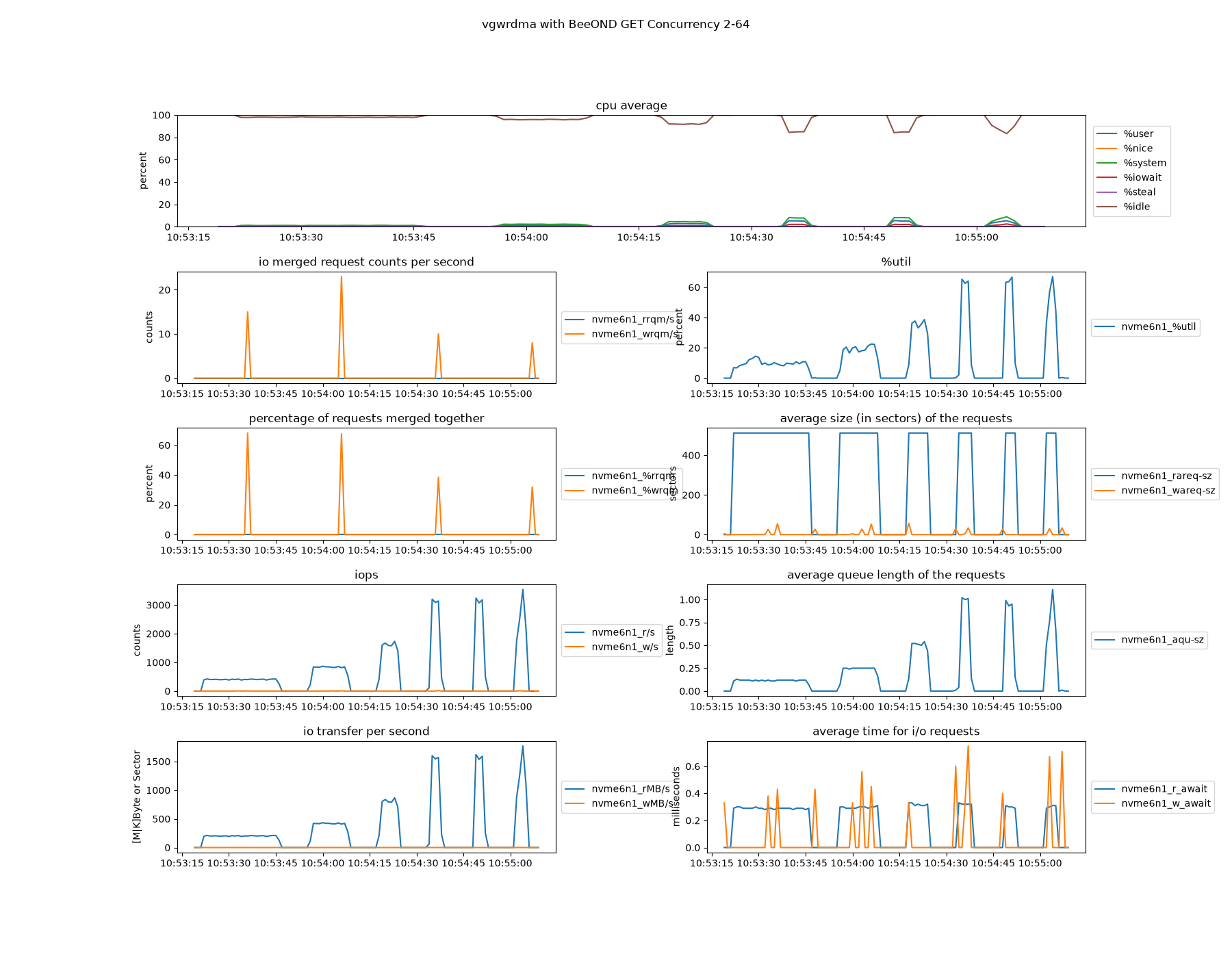

At 64 concurrency, CPU utilization on client is 26% and GET latency goes over 100ms, but both client and server have identical old CPUs. Server-side view:

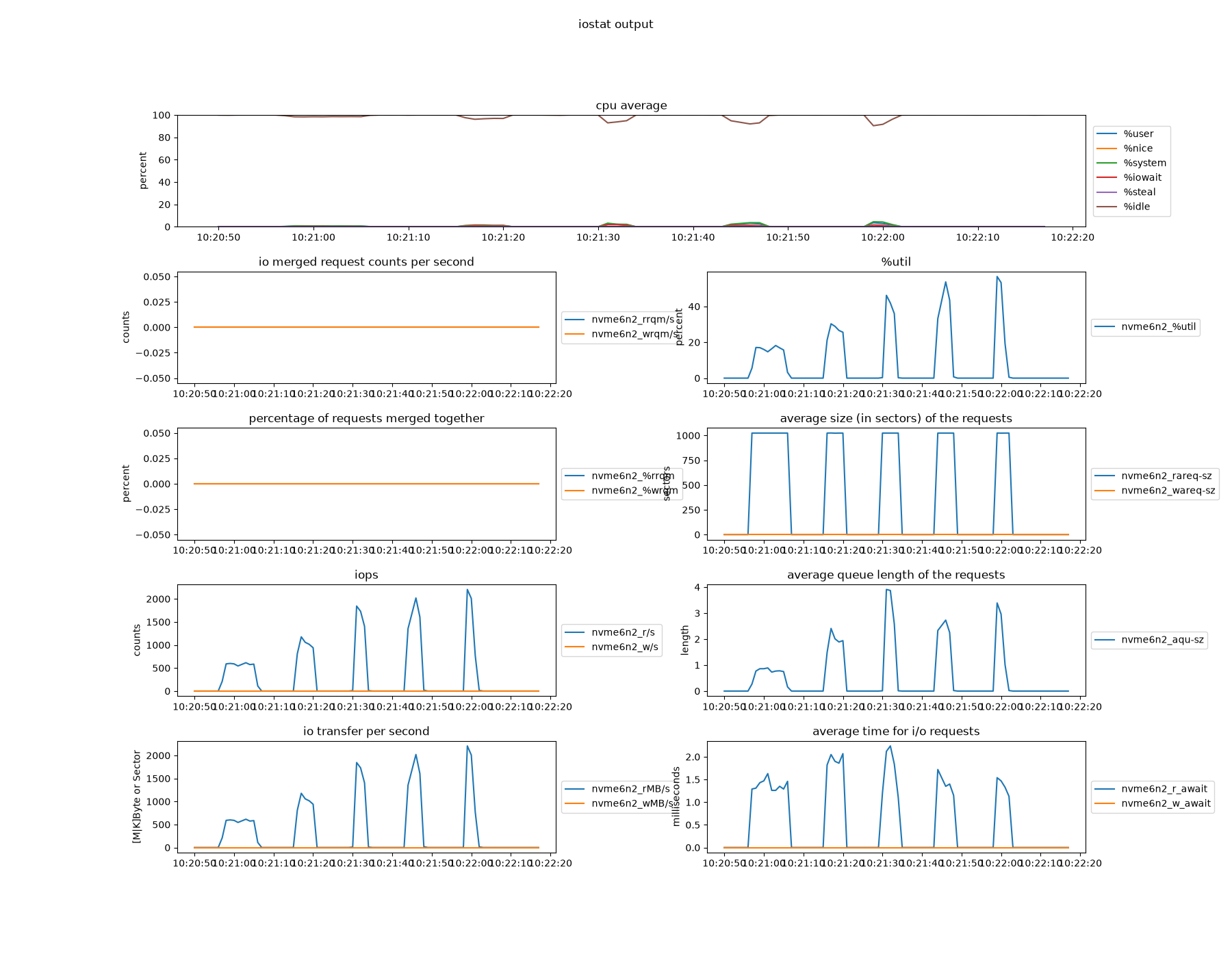

I don't know why IO queue can't visibly cross 1. I had more luck with with XFS, but this approach can't work for scale-out, so it's limited to single host scalability.
I couldn't get -get-only to work with -std-s3 to compare standard S3 with S3/RDMA in GET-only tests.
The potential is there, even without CUDA - improved performance with less CPU resources!
